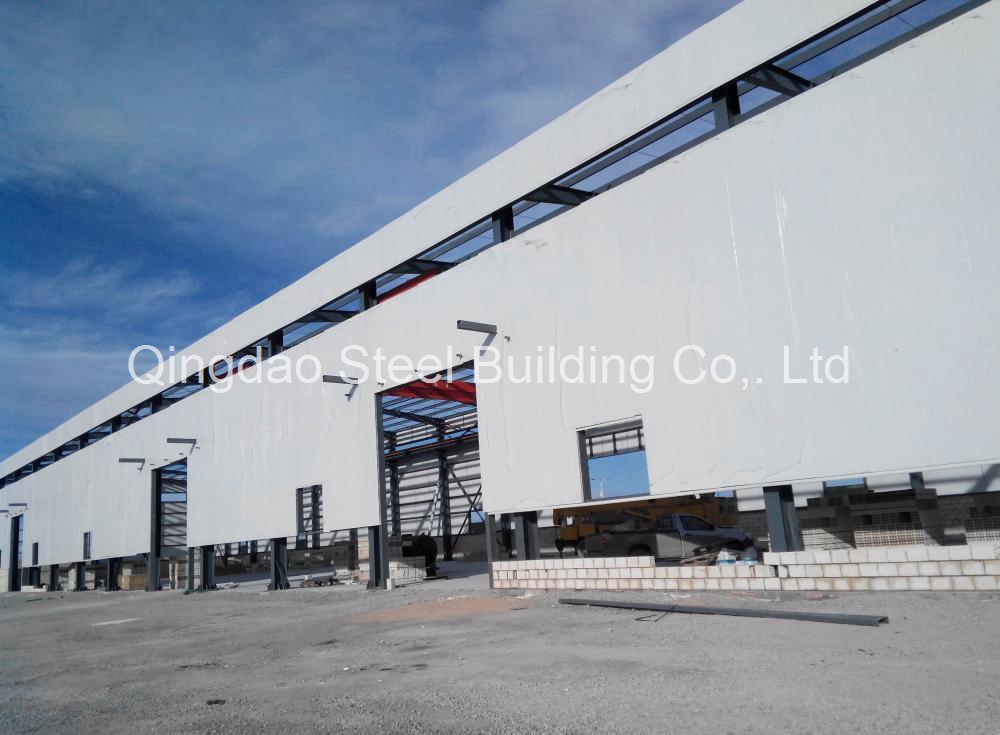

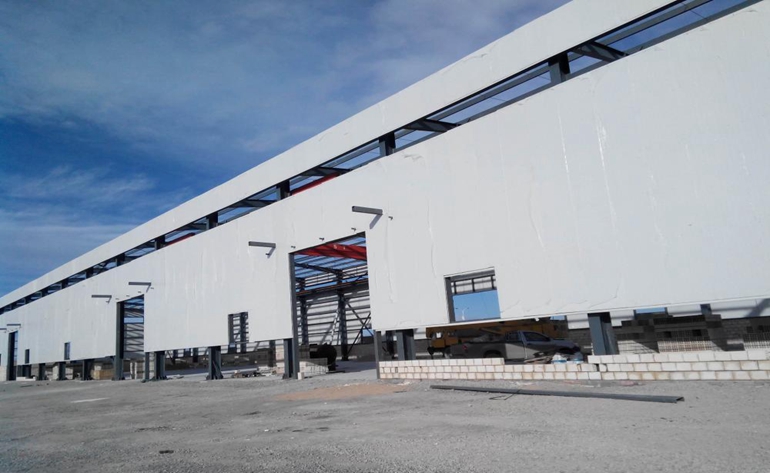

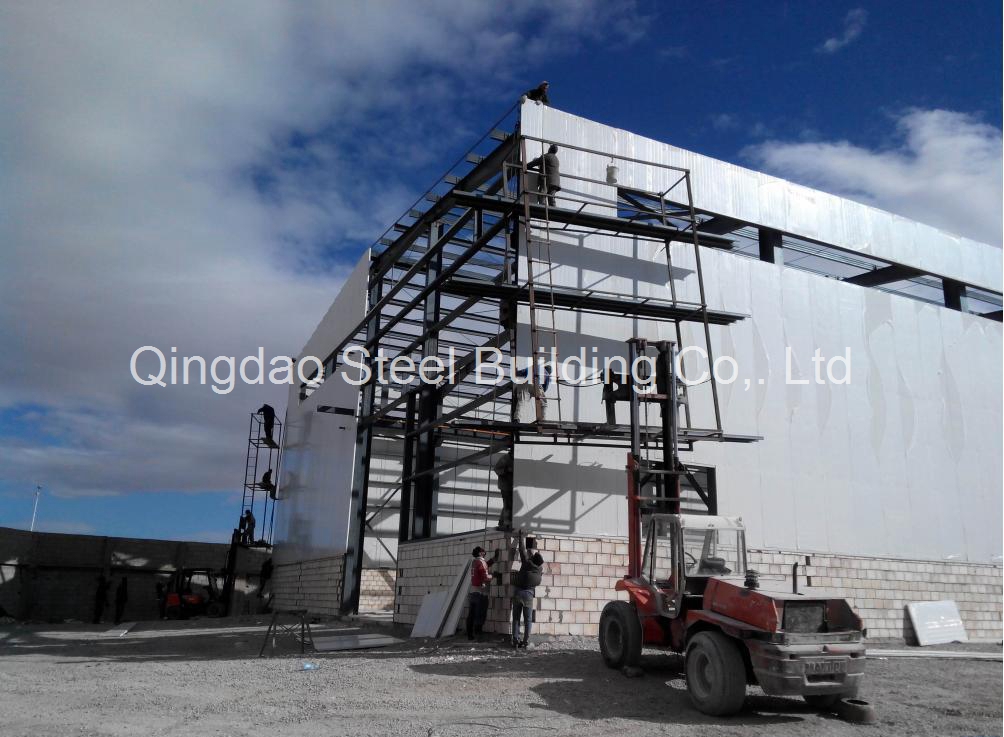

Name of Building: Steel Structure Workshop

Structure System: Steel Structure Building

Area: 2520㎡

Constuction location: Algeria

Project Details:

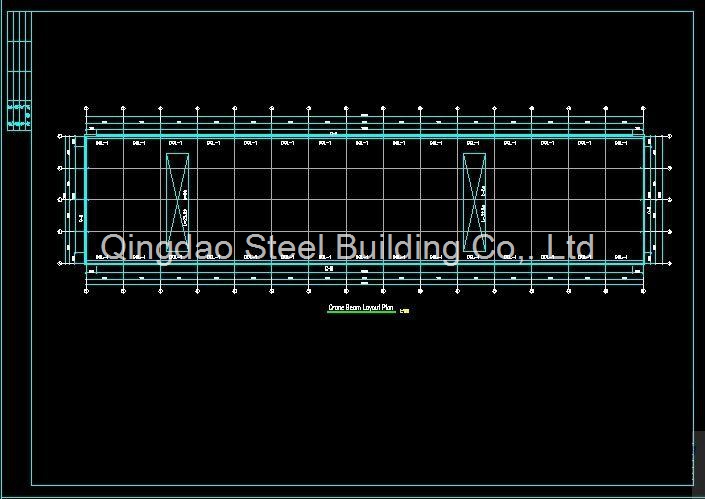

1. Size: 24x105x11m

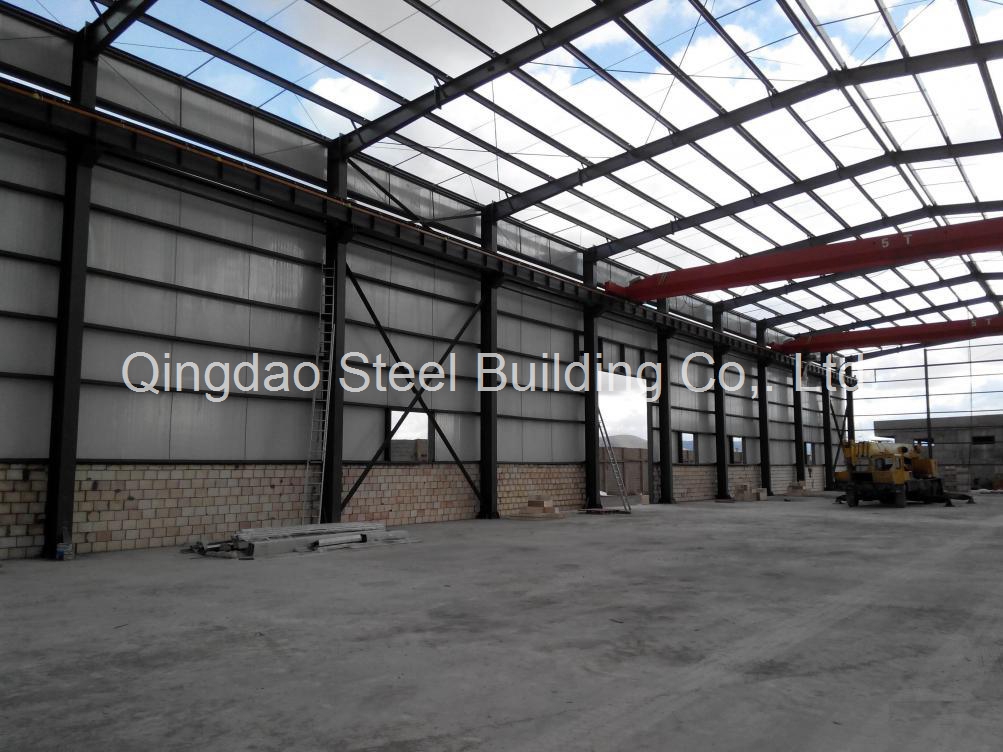

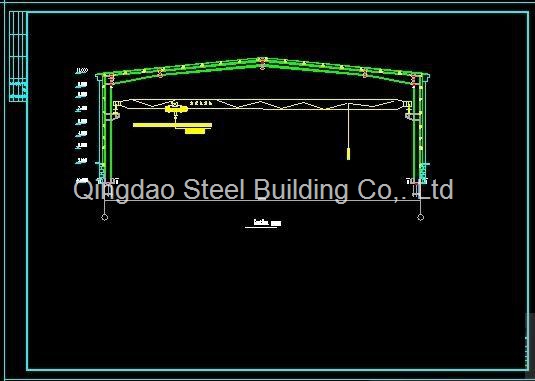

2. Primary Structure: H section steel with two layer epoxy paint, all bolt jointed in site
3. Secondary structure: C Purlin, Tie beam, Roof & Wall X brace

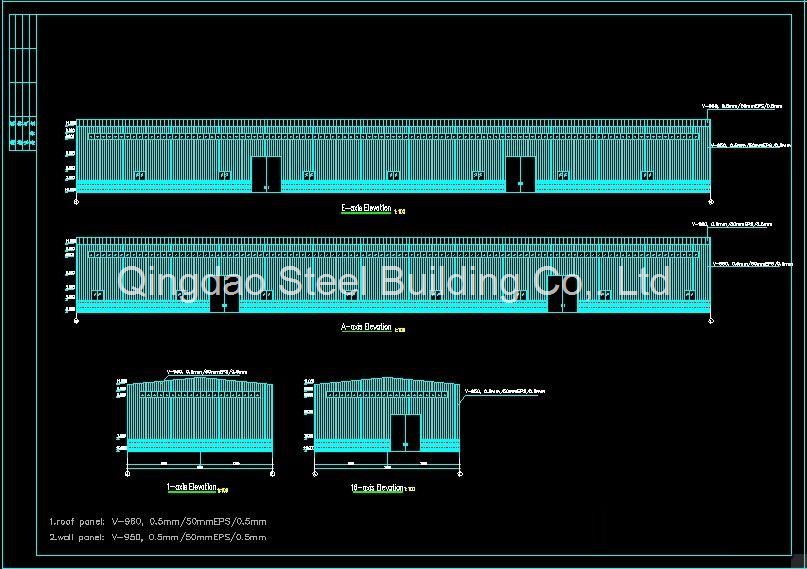

4. Roof Panel: Insulated Steel Sandwich Panel, Thickness=50mm
5. Wall Panel: 2m brickwall in site+ above Sandwich Panel, Thickness=50mm
6. Window: Aluminum alloy frame glass Window
7. Door: Sliding Door with canopy
8. Lifting Capacity of Crane: 5T, 2 sets
9. Snow Load: 0.2KN/M2; Wind Load: 0.5KN/M2
