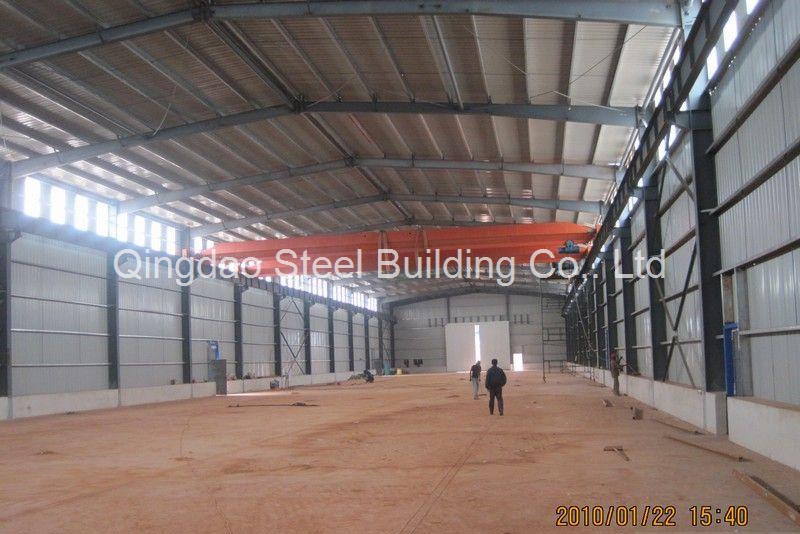

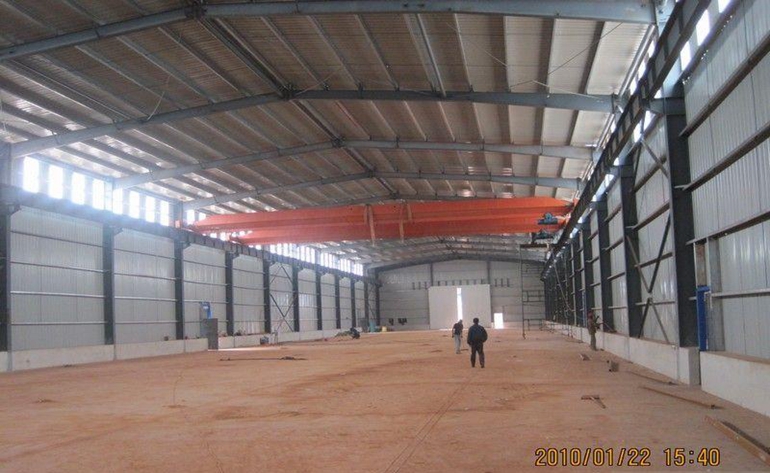

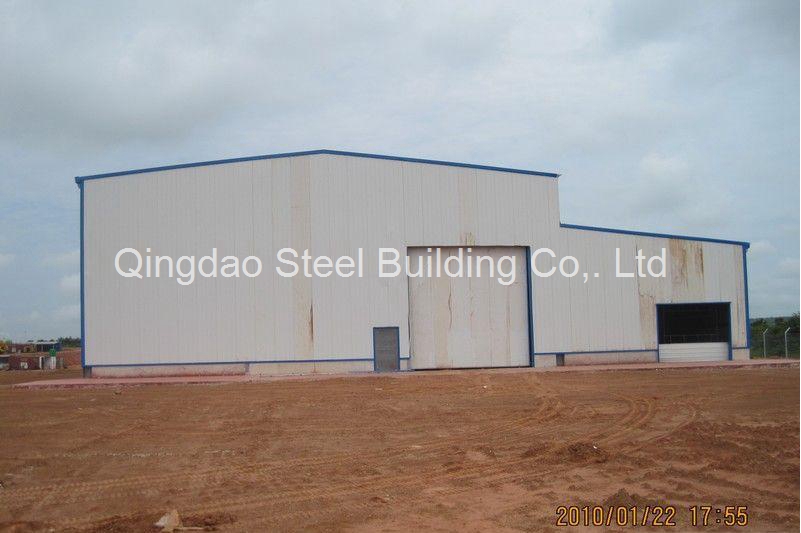

Name of Building: Steel Structure Warehouse

Structure System: Light Steel Structure

Area: 6072㎡

Construction location: Congo

Project Details:

1. Main workshop: 23x184x9.5m (Length* Width* Eave Height)
2. Affiliated: 184m10m6m (Length* Width* Eave Height)
3. Primary Steel Structure: Welded H section steel with two layer epoxy paint, all will be bolted together at site
4. Secondary Frame: C Purlin, Tie beam, Roof and Wall X brace
5. Roof Cladding: 0.5mm Al-Zn alloy coated steel sheet, white color with blue trimming and flashing
6. Wall cladding: 0.8m high brickwall+ above 0.5mm Al-Zn alloy coated steel sheet, white color with blue trimming and flashing
7. Light System: Transparent sheet on the wall
8. Window: Aluminum-alloy Window
9. Door: Rolling Shutter door(6m*6m)

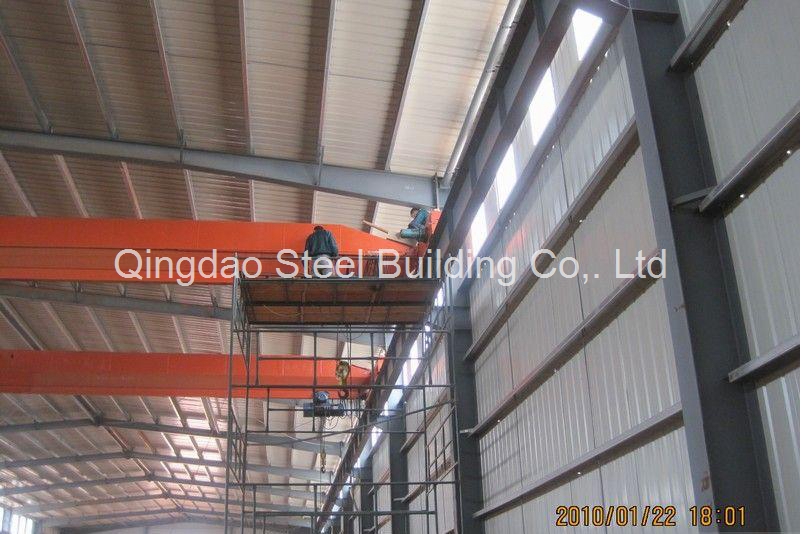

10. Capacity of Crane: 5Ton
