What are steel structure fabrication drawings?

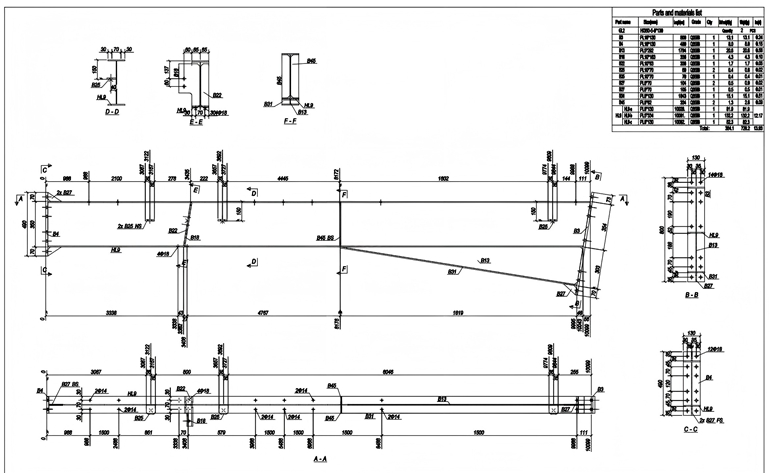

Steel structure fabrication drawings, also referred to as processing detail drawings, are technical documents for steel structure construction projects. They precisely illustrate the geometric shapes of steel structure components, specifications and dimensions of primary and secondary members, relative positions between various components, welding forms as well as relevant technical requirements through graphical representation.
The preliminary design of a steel structure building typically takes the form of a schematic drawing or sketch, which may be directly provided by the client with core design information, or alternatively proposed by the steel structure contractor. Such schematic drawings only supply essential structural references and are not suitable for direct fabrication and production.

Once the client has confirmed the schematic drawing, the development of steel structure fabrication drawings shall commence.Such fabrication drawings shall include detailed design specifications, drawing catalogs, bill of materials for components as well as other auxiliary documentation.

Steel structure fabrication drawing development constitutes a design deepening process, which involves refining the preliminary design to achieve comprehensive, actionable documentation. This deepening work ensures that structural connections and joints meet both design standards and installation requirements, laying a solid foundation for the smooth execution of the project. Specifically, the detailed design encompasses all essential technical parameters, as well as material supply plans, transportation arrangements, and construction methods/sequences required by the contractor. Once finalized, the detailed design can be directly used for component fabrication and production scheduling. Design deepening is an indispensable step to address flaws and deficiencies in the preliminary design. Imperfect initial designs often lead to construction challenges such as irrational component connections, imprecise node details, and complicated construction procedures. By refining and enhancing the preliminary design, steel structure fabrication drawings guarantee the smooth progress of construction while ensuring the structural safety and reliability. Furthermore, design deepening helps optimize the performance and economic benefits of steel structures. Through systematic optimization, the deepened design improves structural stress distribution, stability, seismic resistance, and other key performance indicators. It also fully incorporates various construction-related factors to boost construction efficiency and quality. Additionally, design deepening serves as a critical means to align with the requirements of both the client and the design team. In summary, steel structure design deepening is driven by multiple considerations and practical needs. It resolves preliminary design defects, enhances structural performance and cost-effectiveness, integrates construction-centric factors, and meets the demands of all relevant parties—ultimately facilitating the successful implementation and completion of the project. As such, design deepening is an indispensable link in steel structure projects, playing a pivotal role in ensuring structural safety, stability, and economic efficiency.
