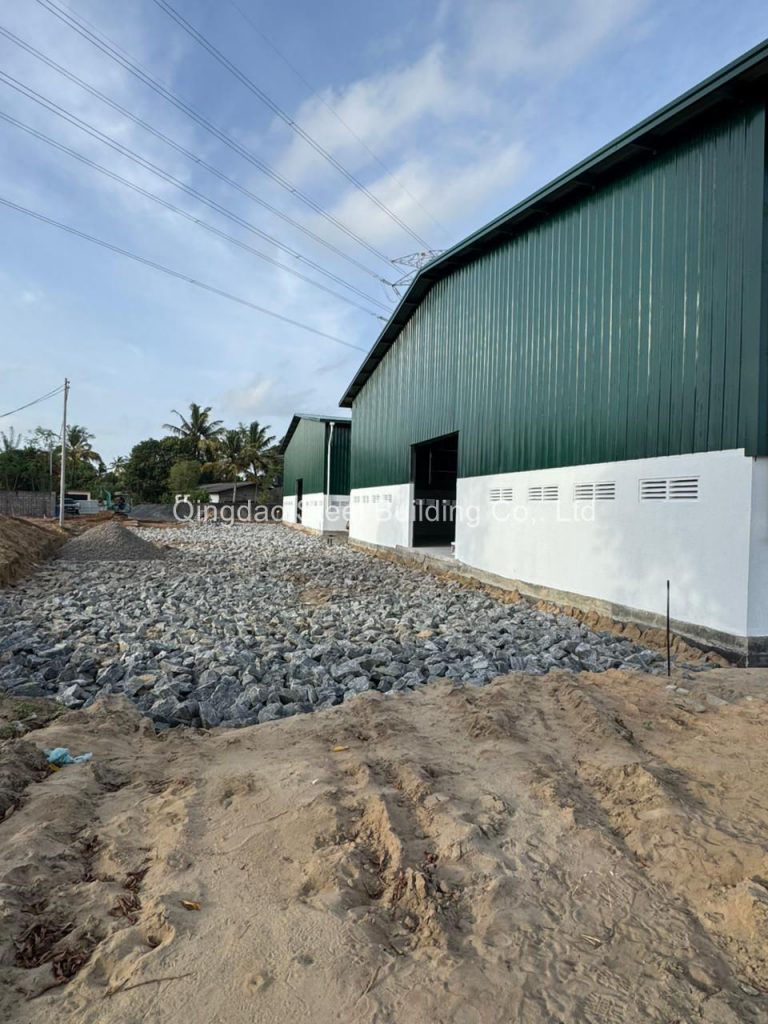

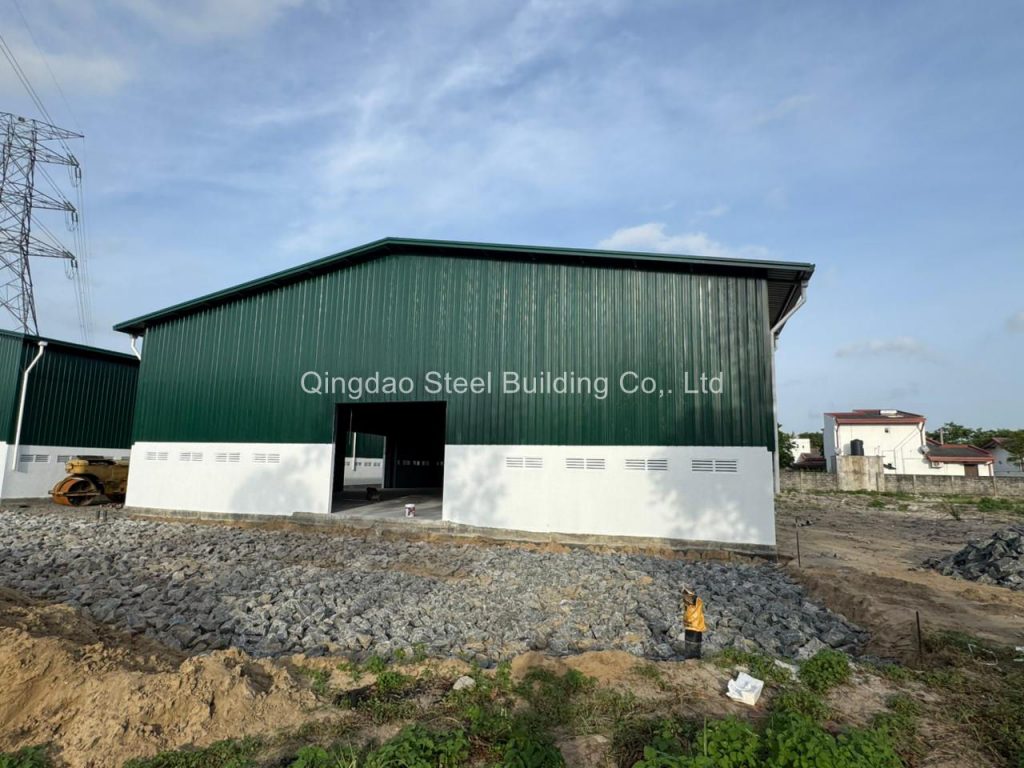

Steel Structure Warehouse+canopy–Sri Lanka
- Industrial Building
- Agriculture Building
- Commercial Building
- Steel Structure Material
- Other Buildings
Get Professional Help
0086-156 1055 7131Recent Posts
Area: 756㎡
Use: industrial storage, steel warehouse, steel shed,

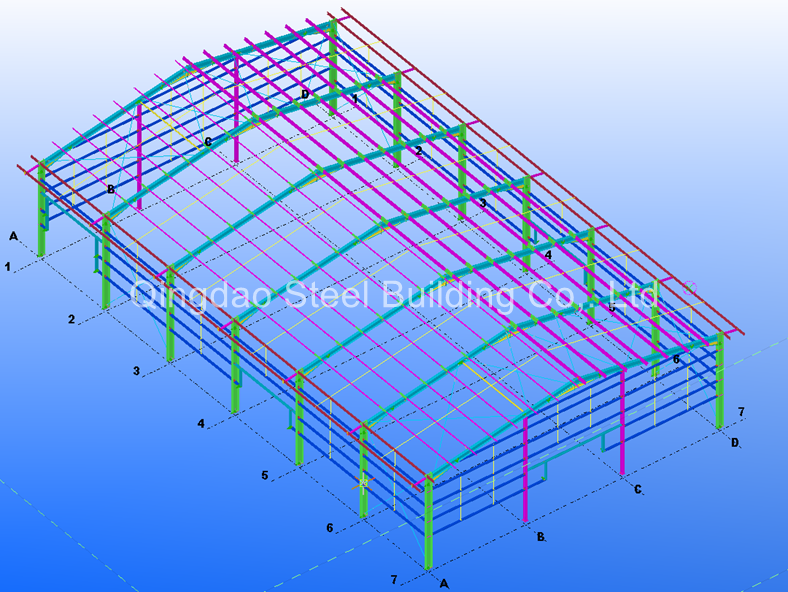

1.Main frame: Epoxy painted Q355B H section Steel Column& rafter with overhang canopy;
2. Sub frame: Q235B overlap Z profile as Roof Purlin, Q355B C profile ad wall purlin, which are treated hot dip galvanize surface.
3.Support Part: with tie beam, X brace, sag rod, fly brace, etc;
4. Roof Cladding: Green color steel sheet
wall cladding: 2.3m brick wall in site+ above gree color steel sheet
5. Door & Window: roller shutter door+ vent louver
6. with gutter+downspout sytem
If you need steel structure building, such as steel warehouse,steel structure workshop,farm shed buidling,etc,please tell us the dimension(WidthxLengthxEave height) of your building, we will do free design drawings and quote for you!
