What compose a steel structure storage shed?
04-17
2026

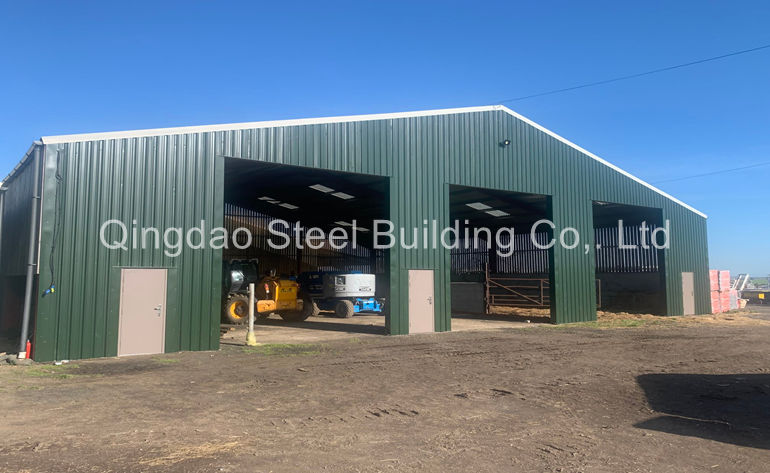

What compose a steel structure storage shed?
A steel structure storage shed is composed of a primary framing system (columns and rafters), secondary framing (roof purlins and wall girts), galvanized steel sheeting for walls and roofing, and anchored concrete foundations. These components are designed for strength, using portal frames for open spaces, and often feature with fasteners, and optional insulation.
1.Key Structural and Component Parts:
Primary Frame: The main load-bearing steel columns and rafters (often portal frames)
Secondary Steel: Purlins (roof) and girts (walls) that connect to the main frames and provide support for the cladding.
Cladding/Sheeting: pre painted galvanized steel sheeting for roofing and walls to protect against weather and pests.
Connections: Anchor bolts, rib plates, and fasteners that fasten columns and rafters.
Components & Accessories: Sliding doors or roll-up doors, windows, and roof ventilators.
Optional Enhancements: Insulation vacuum packages for temperature control, skylight, etc
2.Common Frame Structures:

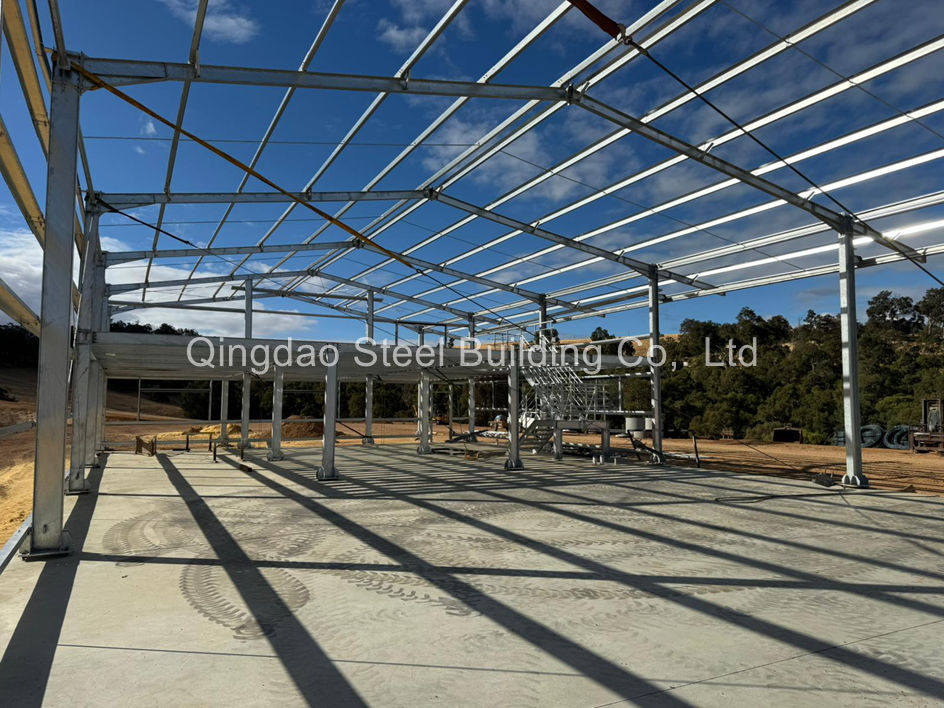

Portal Frames: Two columns connected by rafters.

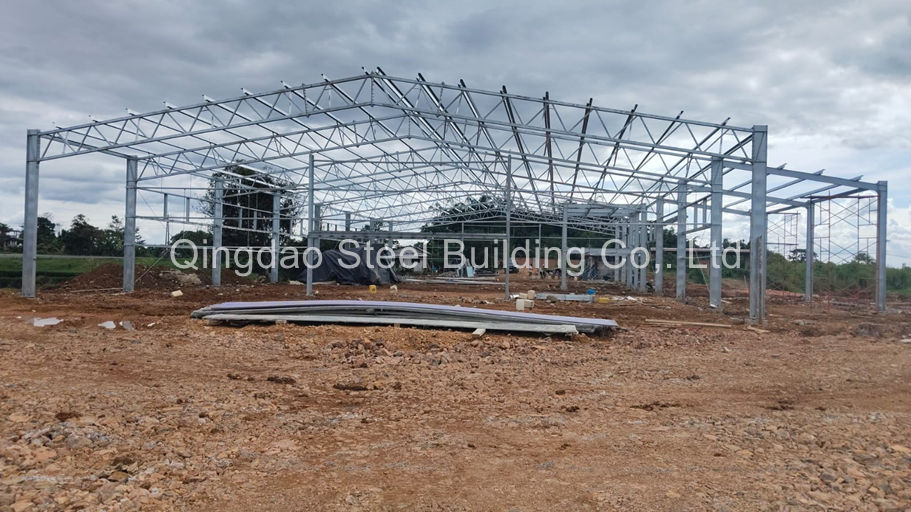

Truss Structures: Used for wider spans.
